  Series Trucks - Brakes and Brake Controls
Page 1
  Engine <> Flywheel & Clutch <> Gearbox & Propshaft <> Axles Suspension and Steering <> Brakes & Brake Controls <> Fuel, Exhaust, Emmission Systems <> Cooling & Heating <> Electrical, Washers-Wipers, Instruments <> Chassis, Subframes, Bodyshell, Fittings <> Facia, Trim, Seats and Fixings <> Screws, Nuts, Bolts

  Series Brakes Page 1 <> Page 2 <> Page 3



  Brake Servo
  Ref STC1816 / Price $129.95
  Application: Series (all)


  Brake Servo Repair Kit - Genuine
  Ref: 18G8951L / Price $79.95
  Application: Series (all) Brake Servo 569338 and AEU1043 minor overhaul kit


  Brake Servo Repair Kit - Britpart
  Ref: 18G8951L / Price $34.95
  Application: Series (all) Brake Servo 569338 and AEU1043 minor overhaul kit


  Brake Servo Non Return Valve
  Ref: 18G8953L / Price $48.95
  Application: Late IIA and SIII


  Vacuum Hose
  Ref: CRC2131 / Price $10.95
  Application: Series - 930mm or 37" length - From Servo to Manifold


  Vacuum Pipe for Brake Servo
  Ref: 569714 / Price $42.95
  Application: Series (all)


  Union Servo Pipe - NLA
  Ref: 90513171 / Price $17.95
  Application: Series (all)


  Vacuum Loss Switch
  Ref: 589219 / Price $31.00
  Application: Certain export models


  Brake Master Cylinder 'CB' Series 2 & early 2a 88"
  Ref: 520849 / Price $29.95
  Application: Series 2 and early 2a SWB 88"
Known as the 'CB' (compression barrel) for models with non-servo brakes uses remote reservoir. Approximate dimensions: Length of body 5 1/4", bore 7/8", mounting centers 2 1/4"


  Rebuild Kit Ref STC1116 / Price $4.86


  Brake Master Cylinder 'CB' Series 2 & early 2a 109"
  Ref: 564706 / Price $29.95
  Application: Series 2 and early 2a SWB 109"
Known as the 'CB' (compression barrel) for models with non-servo brakes uses remote reservoir. Approximate dimensions: Length of body 6", bore 1 1/8", mounting centers 2 1/2"


  Rebuild Kit Ref 605127 / Price $5.59


  Adaptor
  Ref: 139082 / Price $6.95
  Application: Series Clutch and Brake Master Cylinder Adapter - 3/8" UNF male to 7/16" UNF female - use copper washer 233220 to seal


  Lucas CV Brake Master Cylinder Series 2a & 3
  Ref: 90569126G / Price: $79.95


Application: Series 2A and Series 3 SWB (88") models with non-servo brakes, uses remote reservoir. Description: Lucas - TRW clutch master cylinder with cast iron body. Also used as clutch master on 2A - see clutch section. Approximate dimensions: Length of body 130mm, pushrod 80mm, bore 19mm (3/4"), mounting centers 57mm or 2.5".





  Replacement CV Brake Master Cylinder S2A & S3
  Ref: 90569126 / Price: $24.99
  Application: Series 2A and Series 3 SWB (88") models with non-servo brakes, uses remote reservoir. Description: Replacement brake master cylinder with cast iron body. Also used as clutch master on 2A - see clutch section. Approximate dimensions: Length of body 130mm, pushrod 80mm, bore 19mm (3/4"), mounting centers 57mm or 2.5".


  CV Master Rebuild Kit "TRW"
  Ref: STC500090G / Price $7.49
  CV Rebuild Kit superceded from 8G8837L


  CV Master Rebuild Kit
  Ref: STC500090 / Price $4.00
  CV Rebuild Kit superceded from 8G8837L


  Gasket / Spacer
  Ref: 592358 / Price $3.95
  Application: Use with brake masters 90569126 and 520849

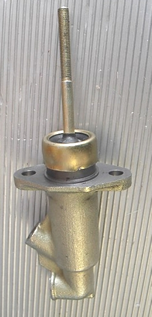

  Replacement Brake Master Cylinder S2A & S3 109"
  Ref: 90569128 / Price: $29.99


Application: 109" non-servo vehicles 'CV' type cylinder. Description: Replacement single line brake master cylinder for use with remote reservoir. Approximate dimensions: Length excluding pushrod 143mm (5.63"), bore 28.6mm (1.125"), mounting hole centers 63.5mm (2.5").

Rebuild Kit Ref: 90606023 Price $5.62



  Replacement Brake Master Cylinder
  Ref: 569339 / Price $64.95
  Application: Series trucks using brake servo and single line system. Distance across mounting centres 3.15" - Allmakes


  Rebuild Kit for 569339
  Ref: 606415 / Price $3.99
  Application: Series trucks using a single line servo assisted brake system


  Brake Master Cylinder Filter
  Ref: 592325 / Price $3.99
  Application: Series III - fits external reservoir 90577636


  Replacement Brake Master Cylinder S2A & S3 88"


Ref: 569671B / Price: $104.95


  Application: 88" dual line system up to 1980. Standard on North America spec vehicles, optional in other markets. Description: Replacement dual line brake master cylinder with cast iron body.
Can be distinguished from post 1980 dual line master cylinder by the vertical retaining screws for the reservoir. Approximate dimensions: Length 181mm (7.16"), bore 22.2mm (0.875"), mounting centers 80mm ( 3.15").


  Rebuild Kit for 569671 - 'TRW' NLA
  Ref: 90606422 / Price $29.95
  Application: Series 88" Brake Master Cylinder Rebuild Kit


  Brake Master Reservoir Kit - 'GIRLING' NLA
  Ref: 64947076 / Price
  Application: Series III - 88" and 109" for Master Cylinder 569671 and 90577520 - Consists of new reservoir, cap, sealing washers and screws


  Replacement Brake Master Cylinder S2A & S3 109"
  Ref: 90577520 / Price: $84.95
  Application: 109" dual line system up to 1980. Standard on North America spec vehicles, optional in other markets. Description: Replacement dual line brake master cylinder with cast iron body.
Can be distinguished from post 1980 dual line master cylinder by the vertical retaining screws for the reservoir. Approximate dimensions: Length 181mm (7.16"), bore 25.4mm (1"), mounting centers 80mm ( 3.15").


  Rebuild Kit for 90577520 'TRW'
  Ref: 607726G / Price $64.95
  Application: Dual Line Master with Servo - Rebuild Kit - Recommended for Lucas Master


  Rebuild Kit for 90577520
  Ref: 607726 / Price $21.95
  Application: Dual Line Master with Servo - Rebuild Kit


  Brake Master Cylinder
  Ref: NRC6096 / Price $99.00
  Application: Series - Dual Line System with Servo. Metric fitting rear M12 - Cylinder Bore 1 1/16"


  Brake Master Cylinder
  Ref: NRC8690 / Price $84.95
  Application: Post 1980 Series 109" and Defender 110 up to HA901219. Metric M12 rear, 3/8 24UNF front - for dual line system - a cheaper solution to the more expensive Lucas NRC6096 - Cylinder Bore 1"


  Brake Master Reservoir Kit - Britpart
  Ref: AEU1045 / Price $46.95
  Application: Series III - 88" and 109" for Master Cylinder NRC6096 and NRC8690 - Consists of new reservoir, cap, sealing washers and spring pins


  Brake Master Repair Kit
  Ref: AEU1047 / Price $7.95


Application: For Master Cylinder NRC6096

Series III 88" and 109" post 1980 metric
109" V8 from 1984



  Cap - Fluid Reservoir
  Ref: SJL500030 / Price $5.25
  Application: Brake Reservoir Cap - Superceded from STC976 and AAU7965


  Lucas Wheel Cylinder S2A & S3
  Ref: 243296G / Price: $66.48
  Application: Front right hand cylinder on SWB models to 1980, rear RH wheel cylinder on SWB models from 1980 onwards. Rear RH wheel cylinder on all 109 models. Main casting is of Aluminum.
Lucas Wheel Cylinder SIIa and SIII

  Lockheed Delphi Wheel Cylinder S2a & S3
  Ref: 243296D / Price: $27.95
  Application: Front right hand cylinder on SWB models to 1980, rear RH wheel cylinder on SWB models from 1980 onwards. Rear RH wheel cylinder on all 109 models. Main casting is of cast iron.
Lockheed Delphi Wheel  Cylinder SIIa and SIII


  Wheel Cylinder S2a & S3
  Ref: 243296 / Price: $21.95
  Application: Front right hand cylinder on SWB models to 1980, rear RH wheel cylinder on SWB models from 1980 onwards. Rear RH wheel cylinder on all 109 models. Main casting is of aluminum.


  Lucas Wheel Cylinder S2A & S3
  Ref: 243297G / Price: $66.48
  Application: Front left hand cylinder on SWB models to 1980, rear LH wheel cylinder on SWB models from 1980 onwards. Rear LH wheel cylinder on all 109 models. Main casting is of Aluminum.



  Lockheed Delphi Wheel Cylinder S2A & S3
  Ref: 243297D / Price: $27.95
  Application: Front left hand cylinder on SWB models to 1980, rear LH wheel cylinder on SWB models from 1980 onwards. Rear LH wheel cylinder on all 109 models. Main casting is of cast iron.

Lockheed Delphi Wheel Cylinder SIIA & SIII


    Wheel Cylinder S2a & S3
    Ref: 243297 / Price: $21.95
    Application: Front left hand cylinder on SWB models to 1980, rear LH wheel cylinder on SWB models from 1980 onwards. Rear LH wheel cylinder on all 109 models. Main casting is of aluminum.


    Brake Cylinder Overhaul Kit for 243296 & 243297
    Ref: 275744 / Price: $6.15
    Kit for front 88" 10" and 11" Rear Drums. Enough seals for one axle.

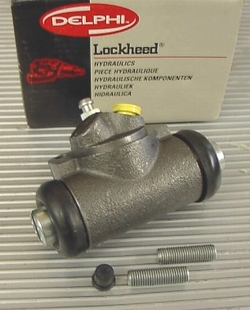

    Lockheed Delphi Wheel Cylinder S2A & S3
    Ref: 243302D / Price: $29.95
    Application: 88 inch wheel base rear RH to 1980. Used with 10 inch brake drums. Description: Cast iron wheel cylinder by Lockheed Delphi.
Lockheed Delphi Wheel Cylinder SIIA & SIII


  Wheel Cylinder S2A & S3
  Ref: 243302 / Price: $21.95
  Application: 88 inch wheel base rear RH to 1980. Used with 10 inch brake drums.


  Lockheed Delphi Wheel Cylinder S2A & S3
  Ref: 243303D / Price: $29.95
  Application: 88 inch wheel base rear left hand to 1980. Used in 10 inch drums. Description: Cast iron wheel cylinder by Lockheed Delphi.
Lockheed Delphi Wheel Cylinder SIIA & SIII


  Wheel Cylinder S2A & S3
  Ref: 243303 / Price: $21.95
  Application: 88 inch wheel base rear left hand to 1980. Used in 10 inch drums.


  Brake Cylinder Overhaul Kit for 243302 & 243303
  Ref: 266687 / Price: $7.58
  Kit for rear 88" 10" Drums. Enough seals for one axle.


  Lucas Wheel Cylinder Series 2A & 3
  Ref: 243743G / Price: $39.50
  Application: 109 4cylinder front left hand wheel cylinder. 2 needed per wheel. Also 88" front left hand wheel cylinder from 1980 onwards. Description: Lucas single piston wheel cylinder with cast iron body.


  Lockheed Delphi Wheel Cylinder Series 2A & 3
  Ref: 243743D / Price: $27.95
  Application: 109 4cylinder front left hand wheel cylinder. 2 needed per wheel. Also 88" front left hand wheel cylinder from 1980 onwards.
Description: Lockheed Delphi LW30360 single piston wheel cylinder with cast iron body.
.
Lockheed Delphi Wheel Cylinder SIIA & SIII


  Wheel Cylinder Series 2A & 3 - Allmakes
  Ref: 243743 / Price: $19.95
  Application: 109 4cylinder front left hand wheel cylinder. 2 needed per wheel. Also 88" front left hand wheel cylinder from 1980 onwards.
Description: Single piston wheel cylinder with cast aluminum body. Does not include bleed nipple


  Lucas Wheel Cylinder Series 2A &3
  Ref: 243744G / Price: $39.50
  Application: 109 4cylinder front right hand wheel cylinder. 2 needed per wheel. Also 88" front right hand wheel cylinder from 1980 onwards. Description: Lucas single piston wheel cylinder with cast iron body.


  Lockheed Delphi Wheel Cylinder S2A & S3
  Ref: 243744D / Price: $27.95
  Application: 109 4cylinder front right hand wheel cylinder. 2 needed per wheel. Also 88" front right hand wheel cylinder from 1980 onwards. Description: Lockheed Delphi LW30361 single piston wheel cylinder with cast iron body.
Lockheed Delphi Wheel Cylinder SIIA & SIII


  Wheel Cylinder Series 2A & 3 - Allmakes
  Ref: 243744 / Price: $19.95
  Application: 109 4cylinder front right hand wheel cylinder. 2 needed per wheel. Also 88" front right hand wheel cylinder from 1980 onwards.
Description: Single piston wheel cylinder with cast aluminum body. Does not include bleed nipple


  Brake Cylinder Overhaul Kit for 243743 & 243744
  Ref: 266684 / Price $9.72


Application: Ser III 109" and 88" > 1980 Frt 11" Drums, enough seals for one axle




  Wheel Cylinder - Front LH
  Ref: 600200 / Price $22.95
  Application: Series III 2.6 and V8 3.5L - 2 required


  Wheel Cylinder - Front RH
  Ref: 600201 / Price $22.95
  Application: Series III 2.6 and V8 3.5L - 2 required


  Brake Cylinder Overhaul Kit for 600200 & 600201
  Ref: 600210 / Price $9.72
  Application: Ser III 2.6L and V8 3.5L. Enough seals for one axle



  Brake Cylinder Bleed Screw
  Ref: 556508 / Price $1.15
  Application: Series (all)


  Bleed Screw Dust Cap
  Ref: 594091 / Price $0.55
  Application: Series (all)


  Nut 5/16 UNF
  Ref: NH605041L / Price $0.45
  Application: series (all) for attaching brake cylinders


  Locking Washer
  Ref: WM600051L / Price $0.35
  Application: series (all) for attaching brake cylinders
